FADINI BOLLARDS
Fadini automated bollards supplied by
Control 101
Bollards whether bought singular or in multiples are supplied with a control 101 600 series GRP control cabinet, giving you a control cabinet solution as part of your purchase.
Each control cabinet comes with as standard
-
Mains circuit
-
Control board
-
Control board loom
-
Input/output din rail
-
Booklet
-
Key lock
-
Additional din rail mounting space​
Additional control cabinet equipment such as loop detectors, power supply units, time switches etc can be added to give your cabinet that final touch.
Streamline your installations with a control cabinet solution. Simply Mount, gland off field wiring, terminate, commission, and have working solution in less time. Repeat on next install.
DESIGN AND MANUFACTURING
Recommended to control access to residential areas
and also for commercial and industrial applications.
OIL-HYDRAULIC
Hydraulic locking device in standing position
(standard) and emergency manual lowering by
a release spanner supplied with the equipment.
Solenoid valve (as an option) for automatic lowering
in case of power failure. Tested for heavy duty
service even in low and high temperature conditions.
EASY ACCESS TO THE OIL-HYDRAULIC
COMPONENTS
The handy housing position of the motor pump and oil-hydraulic actuator inside the bollard allows for easy maintenance and reduces service and installation times. In this way the components are also more protected, rust and other factors of
deterioration are prevented.
​
SIMPLE AND QUICK TO INSTALL
Reduced weight of the pit so that no particular excavation or brick works are needed. Cataphoresis treated and polyester powder coated scratch-proof
steel cylinder, head with rubber edge. Hall effect limit switch sensors, LED lights (optional).
VERSATILE
A vast range of command and safety accessories allow for reliable and precise control of the installations. The electronic control unit can be set so that it can manage several bollards at a time.

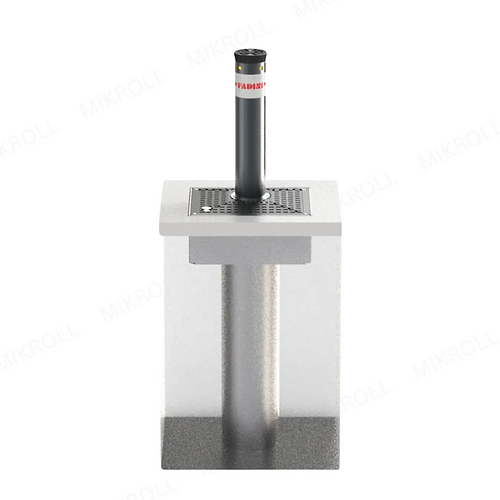

Cylinder diameter (mm) 100
Cylinder thickness (mm) 5
Cylinder height from ground (mm) 500/600/800
Cylinder material S235JRH steel
Cylinder treatment and finishing cataphoresis and polyester powder coating RAL 7016
Pit hot dip galvanization
Working temperature (°C) -20 ÷ +80 -40 [A]
Oil type 708L
Power supply (Vac – Hz) 230 - 50
Absorbed power (W) 330
Absorbed current (A) 1,8
Power yield (kW / HP) 0,25 / 0,33
Grade of protection IP
of the hydraulic motor-pump 67
Frequency of use (cycles/day) heavy duty / 2.000
Impact resistance (J) 30.000
Breakout resistance (J) 150.000
Maximum static load (kg) 20.000
DESIGN AND MANUFACTURING
Recommended to control access to residential
areas and also for commercial, industrial and urban
applications requiring a high number of operations
a day.
OIL-HYDRAULIC
Hydraulic locking device in standing position
(standard) and emergency manual lowering by
a release spanner supplied with the equipment.
Solenoid valve (as an option) for automatic lowering
in case of power failure. Obstacle detector to
prevent the bollard from rising when an obstacle
is on it. Heating device for applications in cold
climates (-40 °C).
EASY ACCESS TO THE OIL-HYDRAULIC
COMPONENTS
The handy housing position of the motor pump
and oil-hydraulic actuator inside the bollard allows
for easy maintenance and reduces service and
installation times. In this way the components
are also more protected, rust and other factors of
deterioration are prevented.
STRONG
Scratch-proof cataphoresis treated and polyester
powder coated steel rising cylinder. Available also
in AISI 304 and AISI 316 brushed stainless steel
options. HRC models (High Resistance Cylinder)
for a greater resistance to breakout: 420.000 J.
Connector and junction box IP 66 for cabling. Hall
effect limit switch sensors, cylinder head with
rubber edge and integrated LED lights.
VERSATILE
A vast range of command and safety accessories
allow for reliable and precise control of the
installations. Beeper to signal the movements. The
electronic control unit can be set so that it can
manage several bollards at a time.

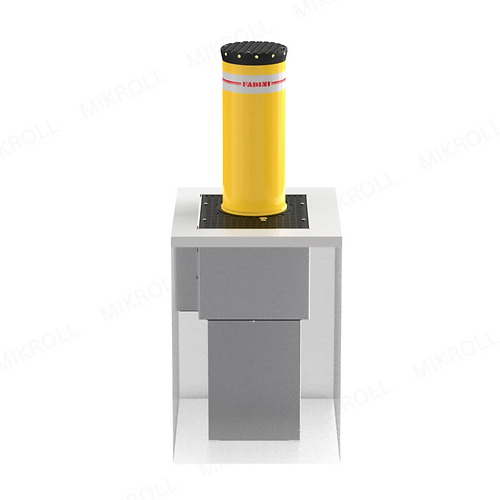

Cylinder diameter (mm) 275
Cylinder thickness (mm) 4
Cylinder height from ground (mm) 500/600/700/800
Cylinder material
S235JRH steel
stainless steel AISI 304
stainless steel AISI 316
Cylinder treatment and finishing
cataphoresis and polyester
powder coating RAL 1028
brushed
brushed
Pit hot dip galvanization
Working temperature (°C) -20 ÷ +80 (-40 with heater)
Oil type 708L
Power supply (Vac – Hz) 230 - 50
Absorbed power (W) 1.100
Absorbed current (A) 1,8 ÷ 3,5
Power yield (kW / HP) 0,25 / 0,33
Grade of protection IP/motor-pump 67
Frequency of use (cycles/day) heavy duty / 2.000
Impact resistance (J) 52.000 | 70.000 - HRC
Breakout resistance (J) 320.000 | 420.000 - HRC
Maximum static load (kg) 20.000
ARMOURED SECURITY
Constructed to protect places where a high level of
breakout resistance against ram-raids is demanded
and many operations a day are required, such as
commercial centres, banks, car showrooms, etc.
Ideal to control access in residential, commercial
and industrial areas.
OIL-HYDRAULIC
Hydraulic locking device in standing position
(standard) and emergency manual lowering by
a release spanner supplied with the equipment.
Solenoid valve (as an option) for automatic lowering
in case of power failure. Obstacle detector to
prevent the bollard from rising when an obstacle
is on it. Heating device for applications in cold
climates (-40 °C).
EASY ACCESS TO THE OIL-HYDRAULIC
COMPONENTS
The handy housing position of the motor pump
and oil-hydraulic actuator inside the bollard allows
for easy maintenance and reduces service and
installation times. In this way the components
are also more protected, rust and other factors of
deterioration are prevented.
STRONG
Scratch-proof cataphoresis treated and polyester
powder coated steel rising cylinder. Available
also with an AISI 304 brushed stainless steel
cover sleeve, thickness 12/10. HRC models (High
Resistance Cylinder) for a greater resistance to
breakout: 550.000 J. Connector and junction box
IP 66 for cabling. Hall effect limit switch sensors,
cylinder head with rubber edge and integrated LED
lights.
VERSATILE
A vast range of command and safety accessories
allow for reliable and precise control of the
installations. Beeper to signal the movements. The
electronic control unit can be set so that it can
manage several bollards at a time.
Cylinder diameter (mm) 275
Cylinder thickness (mm) 12
Cylinder height from ground (mm) 500/600/700/800
Cylinder material S355J2H steel
Cylinder treatment and finishing
cataphoresis and polyester
powder coating RAL 7016
AISI 304 brushed SS steel sleeve
Pit hot dip galvanization
Working temperature (°C) -20 ÷ +80 (-40 with heater)
Oil type 708L
Power supply (Vac – Hz) 230 - 50
Absorbed power (W) 1.100
Absorbed current (A) 1,8
Power yield (kW / HP) 0,25 / 0,33
Grade of protection IP/motor-pump 67
Frequency of use (cycles/day) heavy duty / 2.000
Impact resistance (J) 60.000 | 90.000 - HRC
Breakout resistance (J) 450.000 | 550.000 - HRC
400 Maximum static load (kg) 20.000
PERIMETER SECURITY
Intended for traffic control and protection of
those sensitive areas (military stations, police
headquarters, airports, etc.), where a high level
of perimeter security is needed against terrorist
attacks. Designed and tested to withstand, in a
single bollard configuration, a vehicle of 7,5 t at a
speed of 48 km/h.
OIL-HYDRAULIC
Hydraulic locking device in standing position
(standard) and emergency manual lowering by
a release spanner supplied with the equipment.
Burglar-proof cover plate preventing the release
system from being accessed and thus the bollard
from being lowered.
STRONG
Scratch-proof cataphoresis treated and polyester
powder coated steel rising cylinder. Available
also with an AISI 304 stainless steel cover sleeve,
thickness 12/10. Breakout resistance: 750.000 J.
Connector and junction box IP 66 for cabling. Hall
effect limit switch sensors, cylinder head with
rubber edge and incorporated LED lights.
VERSATILE
A vast range of command and safety accessories
allow for reliable and precise control of the
installations. Beeper to signal the movements.
Heating device for installations in very low
temperature conditions (-40 °C) where snow and ice
are frequent. The electronic control unit can be set
so that it can manage several bollards at a time.
Cylinder diameter (mm) 275
Cylinder thickness (mm) 12
Cylinder height from ground (mm) 1.000
Cylinder material S355J2H steel
Cylinder treatment and finishing
cataphoresis and polyester powder coating RAL 7016
AISI 304 brushed SS steel sleeve
Pit hot dip galvanization
Rising time (s) [cm/s] ~5,00 [20]
Lowering time (s) [cm/s] ~4,20 [23]
Working temperature (°C) -20 ÷ +80 (-40 with heater)
Oil type 708L
Power supply (Vac – Hz) 230 - 50
Absorbed power (W) 1.850
Absorbed current (A) 5
Grade of protection IP/motor-pump 67
Frequency of use (cycles/day) heavy duty / 2.000
Impact resistance (J) 250.000
Breakout resistance (J) 750.000
Maximum static load (kg) 20.000
PERIMETER SECURITY
Intended for traffic control and protection of those sensitive areas where a high level of perimeter security is needed. Designed on the basis of the ASTM F2656-07, PAS 68:2013, IWA 14-1 specifications.
OIL-HYDRAULIC
Hydraulic locking device in standing position (standard) and emergency manual lowering by a release spanner supplied with the equipment. Burglar-proof cover plate preventing the release system from being accessed and thus the bollard from being lowered.
STRONG
Scratch-proof cataphoresis treated and polyester powder coated steel rising cylinder. Available also with an AISI 304 stainless steel cover sleeve, thickness 12/10. Breakout resistance: 700.000 J. Connector and junction box IP 66 for cabling. Hall effect limit switch sensors, cylinder head with rubber edge and incorporated LED lights.
VERSATILE
A vast range of command and safety accessories allow for reliable and precise control of the installations. Beeper to signal the movements. Heating device for installations in very low temperature conditions -40 °C where snow and ice are frequent. The electronic control unit can be set so that it can manage several bollards at a time.
Cylinder diameter (mm) 275
Cylinder thickness (mm) 12
Cylinder height from ground (mm) 800
Cylinder material S355J2H steel
Cylinder treatment and finishing
cataphoresis and polyester
powder coating RAL 7016
AISI 304 brushed SS steel sleeve
Pit hot dip galvanization
Rising time (s) [cm/s] ~4,50 [18]
Lowering time (s) [cm/s] ~3,42 [23]
Working temperature (°C) -20 ÷ +80 (-40 with heater)
Oil type 708L
Power supply (Vac – Hz) 230 - 50
Absorbed power (W) 1.100
Absorbed current (A) 1,8 ÷ 3.5
Grade of protection IP/motor-pump 67
Frequency of use (cycles/day) heavy duty / 2.000
Impact resistance (J) 150.000
Breakout resistance (J) 700.000
Maximum static load (kg) 20.000
DESIGN AND MANUFACTURING
Recommended to control access to residential areas
and also in commercial and industrial applications.
OIL-HYDRAULIC
Hydraulic locking device in standing position
(standard) and emergency manual lowering by
a release spanner supplied with the equipment.
Solenoid valve (as an option) for automatic lowering
in case of power failure. Tested for heavy duty
service even in low and high temperature conditions.
EASY ACCESS TO THE OIL-HYDRAULIC
COMPONENTS
The handy housing position of the motor pump
and oil-hydraulic actuator inside the bollard allows
for easy maintenance and reduces service and
installation times. In this way the components
are also more protected, rust and other factors of
deterioration are prevented.
SIMPLE AND QUICK TO INSTALL
Reduced weight of the pit so that no particular
excavation or brick works are needed. Cataphoresis
treated and polyester powder coated scratch-proof
steel cylinder. Available option in AISI 304 brushed
stainless steel. Hall effect limit switch sensors, head
with rubber edge, LED lights (optional).
VERSATILE
A vast range of command and safety accessories
allow for reliable and precise control of the
installations. The electronic control unit can be set
so that it can manage several bollards at a time.
Cylinder diameter (mm) 200
Cylinder thickness (mm) 4
Cylinder height from ground (mm) 500/600/800
Cylinder material S235JRH steel stainless steel AISI 304
Cylinder treatment and finishing cataphoresis and polyester powder coating RAL 7016 brushed
Pit hot dip galvanization
Working temperature (°C) -20 ÷ +80 -40 [A]
Oil type 708L
Power supply (Vac – Hz) 230 - 50
Absorbed power (W) 330
Absorbed current (A) 1,8
Power yield (kW / HP) 0,25 / 0,33
Grade of protection IP
of the hydraulic motor-pump 67
Frequency of use (cycles/day) heavy duty / 2.000
Impact resistance (J) 30.000
Breakout resistance (J) 160.000
Maximum static load (kg) 20.000
ANCILLARY
EQUIPMENT
Give you cabinet that final finish
The following section is where you can add ancillary equipment such as power supply units, loop detectors, time switches, for your supplied control cabinet. Also you can add photocells and keypads.
The last selection is for those of you that just need a replacement control board or a control cabinet on its own.
VIX 53
Bidirectional transmitters and radio receivers
868,19 MHz rolling code
VIX 53
DESIGN
Ergonomic and stylish: 4 colours available. It can also be a handy and latest state-of-the-art key fob.
ROLLING CODE
Secure encoding with a 128 bit algorithm. Plug-in or stand alone options with radio receivers, up to 4 channels. Removable memory up to 2.000 users max. Distance: 250 m (open space).
TRANSCEIVER
The transmission of the radio signal is bidirectional, there is a feedback on the transmitter confirming reception of the signal.
RADIO LINK
Extension of the distance of a transmitter radio signal by creating a radio link between several radio receivers.
SECURE
The RED VIX 53 equipment allows for protection key codes to be entered on to the transmitters and radio receivers. SOFTVIXARE enables the creation of a data base and manages complex installations: at a distance it is possible to add, replace or delete a transmitter from the system in case of theft or loss.
FUNCTIONAL
Possibility for a transmitter to be copied, replaced or cancelled at a distance from the installation system.
​
DIVO 71
Transmitters compatible with Astro 43 and Jubi 433 series
433,92 MHz autoapprendimento e rolling cod
DESIGN
Ergonomic and stylish: 4 colours available. It can also be a handy and latest state-of-the-art key fob.
AUTO-LEARNING AND ROLLING CODE
Compatible with the previous series ASTRO 43 and JUBI 433, and with the respective radio receivers, either plug-in or stand alone, up to 4 channels. Distance: 120 m (open space).
FUNCTIONAL
It is possible to remotely copy a DIVO 71, ASTRO 43 or JUBI 433 by a DIVO 71 and memorize a DIVO 71 transmitter into an ASTRO 43 or JUBI 433 radio receiver by following the instructions present in the radio receivers. A DIVO 71 radio receiver does not exist.
Note: if a button of DIVO 71 is pressed and the led flashes: battery almost run down, to replace.
In case a copy or memorizing operations fail:
- check configuration mode of the DIVO 71 transmitter which must coincide with either the ASTRO 43 or JUBI 433 transmitter or radio receiver.
