Gate Controllers – Multi‑Zone Access Control Panels

Control gates, barriers, bollards and vehicle flow with a single, structured panel.
Logistics • Car Parks • Concierge • Commercial Sites

​​

​

Overview
Control 101 Gate Controllers are pre‑built access control panels designed to operate gates, barriers, and bollard. Control gates, barriers and bollards across logistics yards, car parks, concierge desks, and commercial sites. There are the mk1 & mk2 versions with combinations to suit just about any scenario. However if you require a bespoke solution, then simply pop us over an email outlining what it is you want.

​

The gate controller system is broken down into 4 sections

​

1. The gate controller -    Each gate controller comes with 10 meters of pre terminated 1mm YY multi-core cable                                                                (9.5meters usable length).

2. Junction boxes -           Each Junction box comes with cable glands

3. Cable -                        5 meter, 10 meter, 15 meter and 20 meter lengths. 2-core to 50-core.

4. External controllers -   Each External controller comes with cable glands

​

​​​Each controller is built around a clean, labelled layout with:
•     Dedicated E‑Stop buttons
•     Printed zone labels
•     Installer‑friendly wiring
•     Options for selector or key switches available
These panels are ideal for sites requiring manual override, emergency stop access, and multi‑zone control from a single location.

​

The difference between Controller MK1 & MK2

MK1 – Versatile Multi‑Zone Controller
•     Supports up to 3 variants
•     Includes E‑STOP buttons per zone
•     Printed zone labelling
•     Optional for selector or key switches​

•     Ideal for concierge desks, logistics yards, and mixed‑access sites

Each controller comes with 9.5 meters of 1mm YY cable

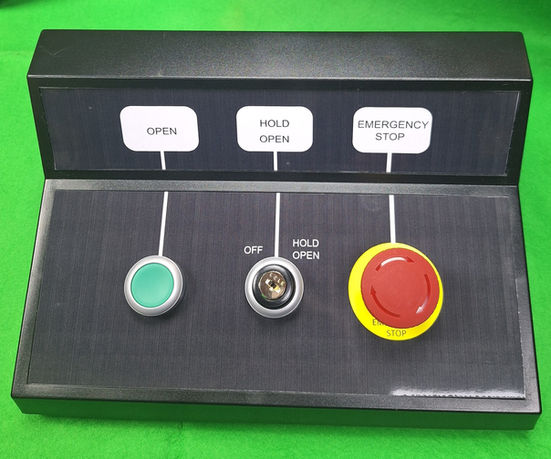

MK1 – Plastic Enclosure with Aluminium Plates. The MK1 Gate Controller is

built inside a durable plastic enclosure fitted with precision‑cut aluminium plates for mounting

E‑Stops, key switches, and printed zone labels. This design provides:

•     A clean, professional finish

•     Excellent durability for indoor and concierge environments

•     Plenty of internal space for optional accessories

•     A versatile platform for Hold Open key switches and custom layouts

MK2 – Slimline Multi‑Zone Controller
•     Supports up to 4 zones
•     Includes E‑STOP buttons per zone
•     Printed zone labelling
•     Compact, clean layout
•     Ideal for car parks, simple gate setups, or space‑restricted installations

Each controller comes with 9.5 meters of 1mm YY cable

​​

MK2 – Aluminium Frame with Plastic End Caps

The MK2 uses a lightweight aluminium frame with plastic end caps, creating

a slim, modern, and compact controller. This design offers:
•     A sleek, space‑efficient profile
•     Strong structural rigidity
•     A clean front‑face layout for E‑Stops and printed labels
•     A simplified internal layout for fast installation



Junction boxes

Junction boxes are straight forward. Available in small,

large, and extra large each one has din rail terminals with

blank identification, identification spares, cable glands and

a blank wiring schedule.









Cable

Cable available is 1mm YY multi-core and can be purchased by 5 meter,

10 meter, 15 meter and 20 meter lengths and  core capacity ranging from

2-core to 50-core.

​

​

​

​



External Controllers

External controllers are units that can control gates, barriers, bollards locally,

ideal for free to exit, hold open and Deadman's operation.

​

​

​

​

​

​

​

​

Customisation Options

​

Gate Controllers can be tailored to your site:

•     Add or remove zones•     Change printed labels

•     Integrate with access control systems

•     Add Hold Open key switches (MK1 only)

•     Choose enclosure type (plastic MK1, aluminium MK2, or custom)

​

Typical examples include:

•     HGV Gate IN •     HGV Barrier IN •     HGV Bollard IN

•     HGV Gate OUT •     HGV Barrier OUT •     HGV Bollard OUT

​

•     Car Park Lower Gate IN     •     Car Park Lower Barrier OUT
•     Car Park Middle Gate IN    •     Car Park Middle Barrier OUT

•     Car Park Upper Gate IN   •     Car Park Upper Barrier OUT

​

​

Typical Applications

•     Logistics yards

•     Commercial car parks

•     Concierge desks

•     Multi‑gate sites

•     Emergency access panels

•     Multi‑zone vehicle control

•     Under ground parking control

•     Security station control

•     Shutter control

​​​​​
