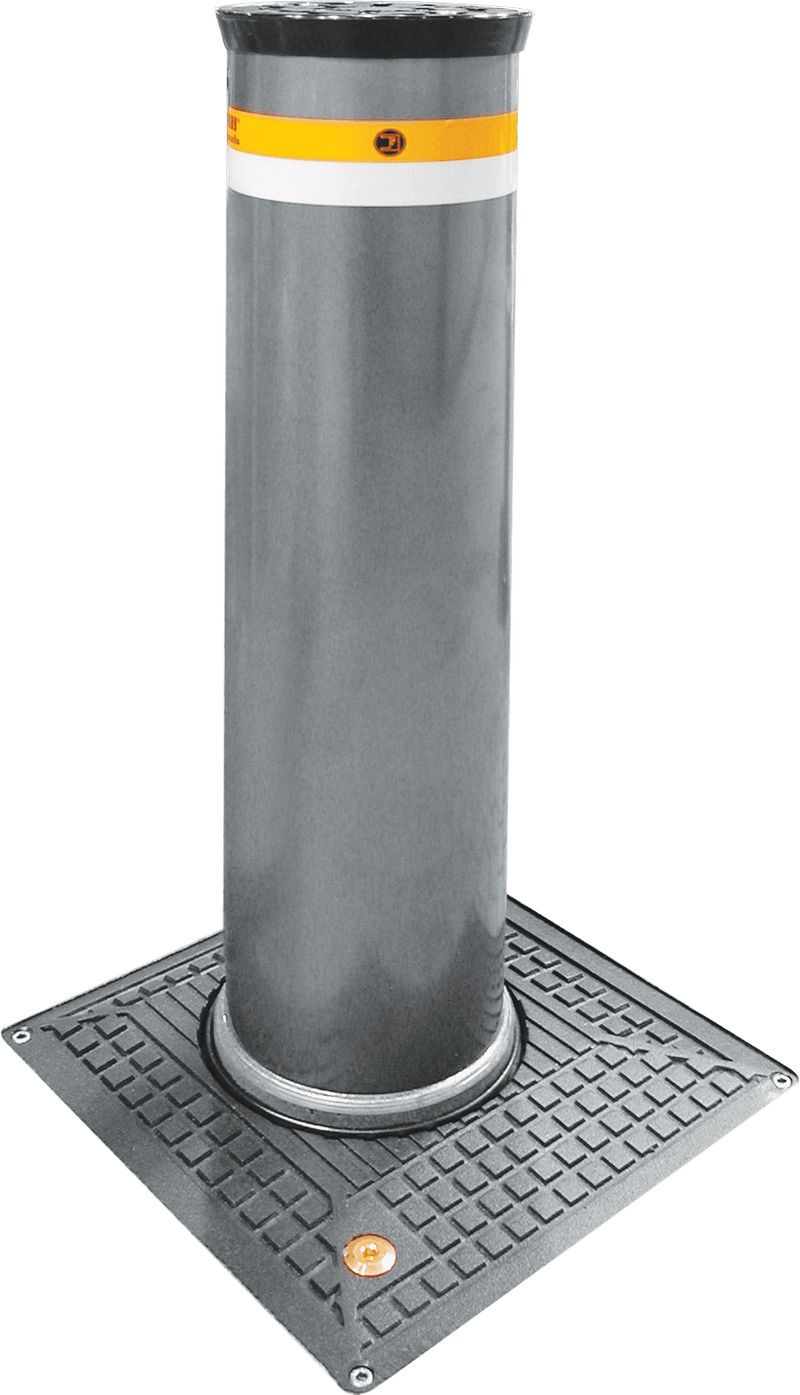

Vigilo
Fully retractable bollard for access control
Automatic oil-hydraulic system, 230 Vac

DESIGN AND MANUFACTURING
Recommended to control access to residential areas and also in commercial and industrial applications.
OIL-HYDRAULIC
Hydraulic locking device in standing position (standard) and emergency manual lowering by a release spanner supplied with the equipment. Solenoid valve (as an option) for automatic lowering in case of power failure. Tested for heavy duty service even in low and high temperature conditions.
EASY ACCESS TO THE OIL-HYDRAULIC COMPONENTS
The handy housing position of the motor pump and oil-hydraulic actuator inside the bollard allows for easy maintenance and reduces service and installation times. In this way the components are also more protected, rust and other factors of deterioration are prevented.
SIMPLE AND QUICK TO INSTALL
Reduced weight of the pit so that no particular excavation or brick works are needed. Cataphoresis treated and polyester powder coated scratch-proof steel cylinder. Available option in AISI 304 brushed stainless steel. Hall effect limit switch sensors, head with rubber edge, LED lights (optional).
VERSATILE
A vast range of command and safety accessories allow for reliable and precise control of the installations. The electronic control unit can be set so that it can manage several bollards at a time.

Vigilo

£0.00Price

  • Fully retractable, heavy duty, automatic bollard consisting of an oil-hydraulic motor-pump unit incorporated inside the main structure and an oil-hydraulic actuator inside the moving cylinder. Suitable to meet residential, commercial and industrial requirements and urban applications. IP 67. Height from ground level can be 500, 600 or 800 mm. Scratch-proof S235JRH steel moving cylinder, thickness 4 mm and ø 200 mm, cataphoresis treated and polyester powder coated, or AISI 304 brushed stainless steel option. Aluminium head with rubber edge, cataphoresis treated aluminium cover plate. Head and cover plate are slip-proof and tread resistant. Moving cylinder fitted with an approved retro-reflecting, high intensity micro-prismatic adhesive film (h 80 mm), available with No. 8 amber-colour signalling LED lights, 10 m electric cable. Hot-dip galvanized steel pit, cover plate allowing access to the hydraulic release device for the manual lowering of the bollard by a special spanner in an emergency. Impact resistance 30.000 J, breakout resistance 160.000 J, static load max 1.600 kg (bollard in raised position), max 20.000 kg (in lowered position). Working temperature -40 ÷ +80 °C. Supply voltage 230 Vac ± 10%, 50 Hz. Absorbed power 330 W. Rising time ~ 5,1 s [h 500 mm from ground level], ~ 5,9 s [h 600 mm from ground level] ~ 7,7 s [h 800 mm from ground level]. Intensive use, 2.000 cycles/a day.

    • Cylinder diameter (mm): 200

    • Cylinder thickness (mm): 4

    • Cylinder height from ground (mm): 500/600/800

    • Cylinder material: S235JRH steel stainless steel AISI 304

    • Cylinder treatment and finishing: cataphoresis and polyester powder coating RAL 7016
      brushed

    • Pit: hot dip galvanization

    • Working temperature (°C): -20 ÷ +80 -40 [A]

    • Oil type: 708L

    • Power supply (Vac – Hz): 230 - 50

    • Absorbed power (W): 330

    • Absorbed current (A): 1,8

    • Power yield (kW / HP): 0,25 / 0,33

    • Grade of protection IP of the hydraulic motor-pump: 67

    • Frequency of use (cycles/day): heavy duty / 2.000

    • Impact resistance (J): 30.000

    • Breakout resistance (J): 160.000

    • Maximum static load (kg): 20.000

    [A]: Possibility to install the automatic bollard in very cold areas, -40 °C and even less, without freezing problems. Refer to code No. 2590L or, as an alternative for existing installations, code No. 2746L.
